WORKING PROTOTYPES · MACRO → MICRO

The Intelligence Cascade

From city-wide command to every commuter's phone — see how traFIX coordinates traffic at every level of the system.

01 LEVEL 1 · B2G COMMAND CENTER

traFIX Oracle

The city-wide digital twin that MMDA operators see. Real-time coordination across Metro Manila's 8 MRT-centric catchment zones with live JICA aggregate impact tracking.

8 MRT-Centric Zones

Dynamic monitoring of catchment zones anchored to each MRT station, with real-time flow scoring and congestion factor overlays.

JICA Impact Tracker

Live aggregate of daily economic savings based on fleet penetration and compliance rates — visualizing real-time ₱ recovery from congestion losses.

Graceful Degradation

Sector resilience toggles demonstrate 3-tier graceful degradation: Online Centralized → Offline Mesh → Isolated Autonomous Intersections.

▼

Operator clicks a sector to zoom in

⬡ SECTOR ZOOM-IN · MRT FEEDER CATCHMENT

Sector 8: Guadalupe

Zooming into a single MRT feeder catchment. Each sector covers the arterial corridors, jeepney routes, and intersection clusters that feed passengers into an MRT station.

LIVE SECTOR MAP Real-time

Node OK Moderate Congested MRT Line Feeder Route

Sector Telemetry

S8_GUADALUPE

Sector Congestion Factor

0.78

AM Peak — Approaching severe threshold

Passenger Throughput

4,820/hr

Commuters entering MRT Guadalupe catchment

Active FaaST Nodes

12/12

2 nodes reporting elevated congestion

Feeder Route Compliance

68%

Commuters following advisory departure times

Average Feeder Speed

18km/h

Across 6 arterial corridors feeding MRT

Sector TFX Minted (Today)

1,240TFX

Compliance certificates validated

Feeder Route Status

JP Rizal St 24 km/h

Rockwell Dr 22 km/h

Kalayaan Ave 16 km/h

Makati Ave 15 km/h

EDSA North 11 km/h

EDSA South 9 km/h

▼

Each node runs its own micro-simulation

02 LEVEL 2 · DISTRIBUTED EDGE CONTROLLERS

FaaST Sector Nodes

Each intersection runs its own solar-powered micro-simulation, coordinating with neighbors over sub-GHz RF mesh — no cloud required.

FaaST_Edge_Node_S8_Guadalupe.log

[SYSTEM] Initializing FaaST Edge Node S8 (Sector Guadalupe)...

[SYSTEM] Porting C++ simulation core to edge hardware target...

[SUCCESS] Simplified arithmetic active: 0 floating-point co-processors required.

[SUCCESS] Proprietary parallel compute array synchronization active (Nominal N×N).

[NETWORK] Offline resilience mode: ON. Sub-GHz RF mesh link established.

[NETWORK] Mesh connection status: 8/8 sector neighbors synced.

[PERF] Hardware telemetry execution: Real-Time Factor (RTF) = >20×.

[PERF] Energy profile: <2W passive solar load; >6× power reduction.

[LEDGER] Compiling cryptographic compliance certificate. Distributed ledger block queued...

N×N Compute Array

0 Co-Processors

8/8 RF Mesh Peers

>20× Local RTF Speed

Ultra-Low Power

Zero floating-point co-processors, under 2W passive solar load, and over 6× energy reduction compared to equivalent GPU compute.

Mesh Resiliency

Sub-GHz RF failover ensures sector nodes continue coordinating even when internet backhaul is severed.

DePIN Incentives

Each node compiles cryptographic compliance certificates, minting TFX tokens on distributed ledger infrastructure for validator rewards.

▼

Advisories reach every commuter

03 LEVEL 3 · COMMUTER PWA & SOCIAL MARKETPLACE

traFIX Go

(Biyahenihan Go)

The citizen sees one thing: leave at 6:45 AM, save ₱47. The entire system above is invisible — they just get better commutes and earn rewards.

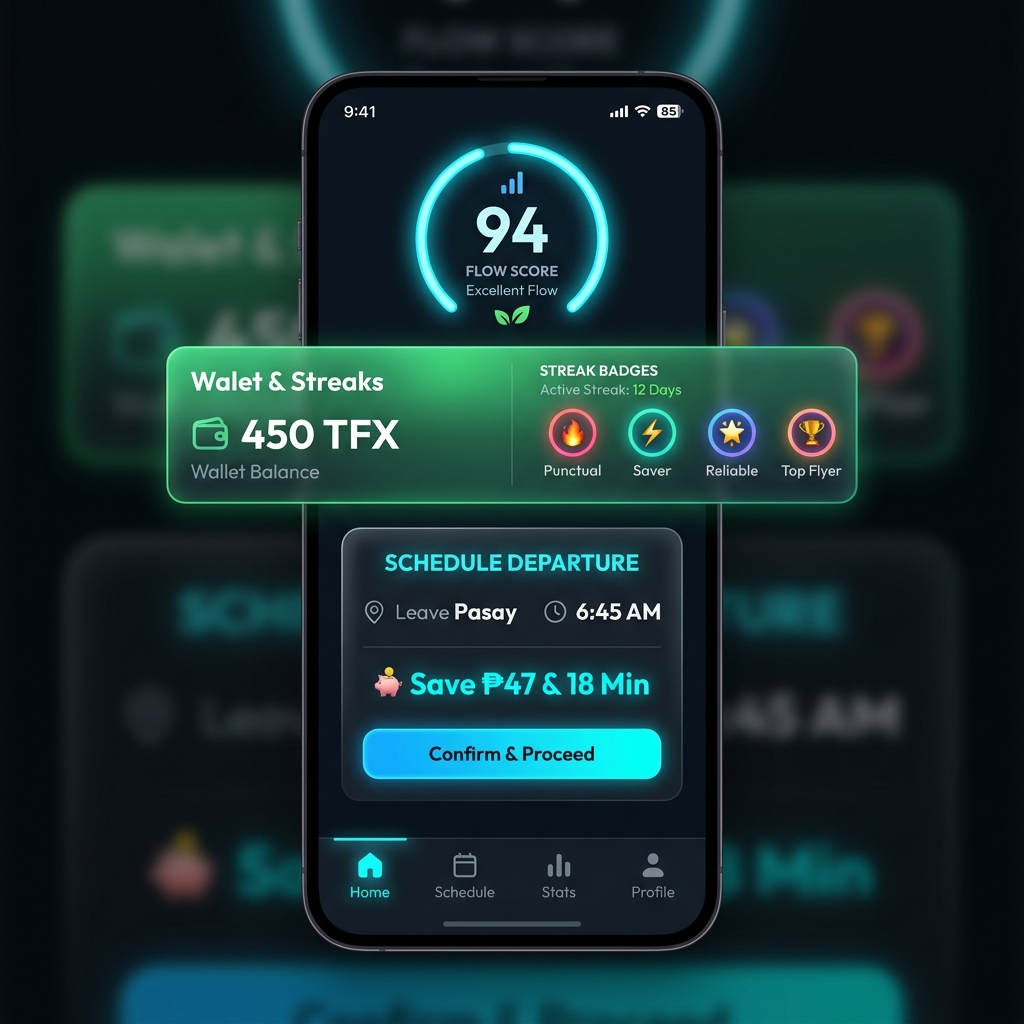

traFIX Go — Commuter PWA with Flow Score and TFX Wallet

94 Flow Score

Personal compliance progress indicator tracking departure-time consistency and streak bonuses across commute corridors.

450 TFX Wallet

On-ledger token balance with distributed ledger integration. Earned through compliance certification and streak multipliers.

Smart Advisories

"Leave Pasay at 6:45 AM — Save ₱47." Actionable departure suggestions computed from real-time sector simulations.
